Completely restyled, the new Trackmaster models TMX22 and TMX55 are longer, wider, quieter, and packed with user-preferred features. The new 22" wide, 63" long running belt, Trackmaster now provides more running area than any club treadmill in the industry. The double-sided running deck gives years of service and absorbs and dampens even the most punishing shocks better than the previous model. Trackmaster's patented MasterTrack belt alignment system eliminates the need to periodically realign the running belt. The new low-profile hood dampens motor noise and allows easier access for maintenance, while the sleek, restyled frame complements any family's décor or layout. Trackmaster's quiet, reliable AC inverter drive can easily handle users up to 400 pounds without the belt lag you'll find in lesser treadmills. Both Trackmaster models provides both Polar and contact heart rate displays as a standard feature, a part of the most innovative programmable treadmill controller anywhere.



Treadmill
User capacity of 400lbs.
Frame of heavy-gauge steel
Epoxy powder coat in jet-black or white
Safety side rails are standard

Drive System
Heavy duty 2.2 HP AC inverter drive
110V, 60Hz, 15A
All international standards available

Running Surface
22" x 63" cushioned, lubricated
Double-sided running deck

0.5-12 MPH (220V)
0.5-10 MPH (110V)
Auto Speed Reset (ASR)
Max speed and use time can be limited

Elevation Range
0-15% standard
0-25% optional

Floor Surface Requirements
33" x 88" level surface

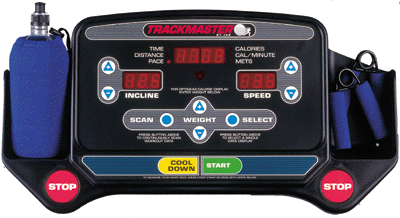

Model TMX22 Controller

bulletLarge, bright LED display
bulletBuilt-in bottle holders
bulletExercise time limit
bulletSpeed/elevation capture software
bulletDual stop switches
bulletCool-down command
bulletCalories/METS based in inputted user weigh

Displays

bulletBody weight
bulletTime or time remaining
bulletDistance
bulletElevation
bulletTotal calories
bulletCalories per minute
bulletMET Level
bulletPace
bulletHeart rate (polar and contact)

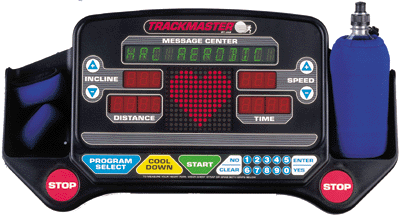

Model TMX55 Controller

bulletLarge, bright LED display
bulletBuilt-in bottle holders
bullet8 adjustable programmed workouts
bullet10 programmable workouts, 10 stages each
bulletQuick start command
bulletExercise time limit
bulletSpeed/elevation capture software
bulletDual stop switches
bulletCool-down command
bulletCalories/METS based in inputted user weight

Modes

bulletManual
bulletProgrammed
bulletHeart rate control

Interactive Programmable Message Center

bulletDisplays customized information
bulletPrompts unfamiliar users
bulletQuick input of speed/time/elevation commands
bulletBuilt-in maintenance log, odometer, hour meter

Displays

bulletWorkout name
bulletSegment (stage) number
bulletStage time
bulletMPH (KMH)
bulletDistance
bulletElevation
bulletMETS, calories/minute, total calories
bulletPace (minutes/mile)
bulletHeart rate (polar and contact)
