Electrosurgery Certified
nerve stimulator and locator

bulletInstantaneous Constant Current Output Control
bulletSix pre-programmed Repeat or On Demand Stimulus Functions
bulletProgrammable storage capabilities
bulletAudible Response
bulletAutomatic Shut Off
bulletOptional pole mounting bracket

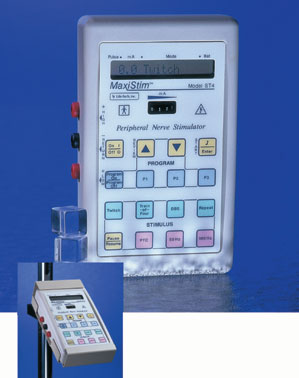

It is no longer necessary to disconnect the stimulator during electrosurgery procedures.* MaxiStim is the first commercially available electrosurgery certified peripheral nerve stimulator and nerve locator. MaxiStim can be used as  peripheral nerve stimulator to monitor neuromuscular transmission to determine the effectiveness of muscle relaxants or as a nerve locator to help locate the targeted fasciculus when delivering regional anesthesia.

MaxiStim includes:

bullet(1) pair EL-5TP Extension Leads with attached Alligator Clip. These leads can be used for nerve stimulation and nerve location.
bullet(2) ProBloc insulated regional block needles**


Optional Accessories for Nerve Location:

bulletTPRN-12S (12" long) Clips to ProBloc Regional Block needles and replaces heavy alligator clips.
bulletTPTJ-24S (7' long) Connects ProBloc HN3 series needles or TPRN-12S to stimulator.
bulletH1543 (8' long) Snap connector lead wire connects stimulator to surface electrode.
bulletMB-4 Mounting Bracket for IV Stand (available but not included with instrument)
MaxiStim ST Series Stimulus Patterns:

Output Current: High Range: 0-80 mA; Low Range: 0-8.0 mA (0-1.0mA in .1mA steps)

Twitch: Pre-Programmed: Single or Repeat 1 Hz Programmable: 1 Hz - 10 Hz
Train of Four: Single or Repeat every 10 seconds Programmable: Repeat every 10, 12 or 20 seconds
Double Burst 3,3: Single or Repeat every 20 seconds Programmable: 3,3 or 3,2 single can be repeated every 10, 12 or 20 seconds
Tetanus: 50 Hz or 100 Hz Programmable: Can be repeated for a length of between 1 to 30 seconds
Post Tetanic Count: Single: 50 Hz tetanus for 5 seconds, 3 second pause, 1 Hz for 20 seconds Programmable: The twitch phase of the PTC can be varied for a 1 Hz twitch for 10 seconds to 30 seconds in 1 second steps
Size: (WxLxH) 3.7" x 6.2" x 1.4" (9.4cm x 15.8cm x 3.6cm)
Weight: 11.5 oz (326 g)
Auto Shut-Off: 20 minutes of non use
Specifications subject to change Caution: Federal (USA) law restricts this device to sale on or by the order of a physician.

*Tests indicate no malfunction of any kind with an electrosurgery scalpel or cautery operating more than 12" from the stimulator.
**Requires that a questionnaire be filled out and returned to Life-Tech.
