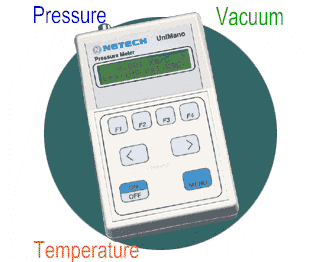

UNIMANO 2000
Universal Pressure Vacuum Temperature Meter

UniMano is a universal Pressure, Vacuum and Temperature meter designed for very precise measurements of pressure, vacuum and temperature. It offers more features than any other pressure/temperature meter in the market.
UniMano is available in 8 different Models- from pressure ranges 02 PSI to 200 PSI in Gauge and Absolute with temperature in YSI 700 or K/J types.

Please refer to the product selection Table

Specifications:
Pressure Ranges: 20, 60, 100 and 200 PSI full range
Vacuum Range: -14 PSI to full range pressure
Accuracy:
±0.1 % of Full Scale Reading ±1 count
Resolution: See chart
Pressure Limit: Double the maximum rated pressure
Operating Temperature: 0° to 50° Centigrade
Compatibility: Non corrosive fluids and gases
P Pressure Connection: 1/8 “ NPT male or Lure Lock
Temperature Connection:
YSI 700 -1/4 “ Phone Jack
Housing:
High impact ABS plastic case
Power: 9-Volt Alkaline Battery or 120 Vac (Optional AC Adapter)
Dimensions: 6 x 3.5 x 1.5 inches (15.2 x 3.5 x 1.5 cm)
Weight: 0.625 lbs (0.283 kg)
Product Selection Table

CAT. NO.

Pressure Range

Temperature Type

880-02PSIG-YSI

02 PSI Gauge

YSI 700 Series Probe

880-10PSIG-YSI

10 PSI Gauge

YSI 700 series Probe

880-30PSIG-YSI

30 PSI Gauge  YSI 700 series Probe

880-60PSIG-YSI

60 PSI Gauge  YSI 700 series Probe

880-100PSIG-YSI

100 PSI Gauge  YSI 700 series Probe

880-200PSIG-YSI

200 PSI Gauge  YSI 700 series Probe

Other pressure ranges and temperature types available. Contact factory
